Complete Solar Power System
Industry-specific attributesSolar Panel TypeMonocrystalline SiliconController TypeMPPTOther attributesFree installation serviceNOPlace of OriginJiangsu, ChinaLoad Power (W)5KW, 10KW, OthersPre-sales p
- Model：
Industry-specific attributes
Solar Panel Type
Monocrystalline Silicon
Controller Type
MPPT
Other attributes
Free installation service
NO
Place of Origin
Jiangsu, China
Load Power (W)
5KW, 10KW, Others
Pre-sales project design
Y
Model Number
HJ-HBS
Application
Home
Battery Type
Lithium Ion, Lead-Acid
Mounting Type
Ground Mounting
Output Voltage (V)
220V/380V
Output Frequency
50/60hz
Work Time (h)
24H
Product name
Home energy storage battery
Model
HJ-HBL48100W HJ-HBL48200W
Battery Type
Lithium Iron Phosphate Battery
Battery Power
10.24kWh/15.36kwh/20.48kwh

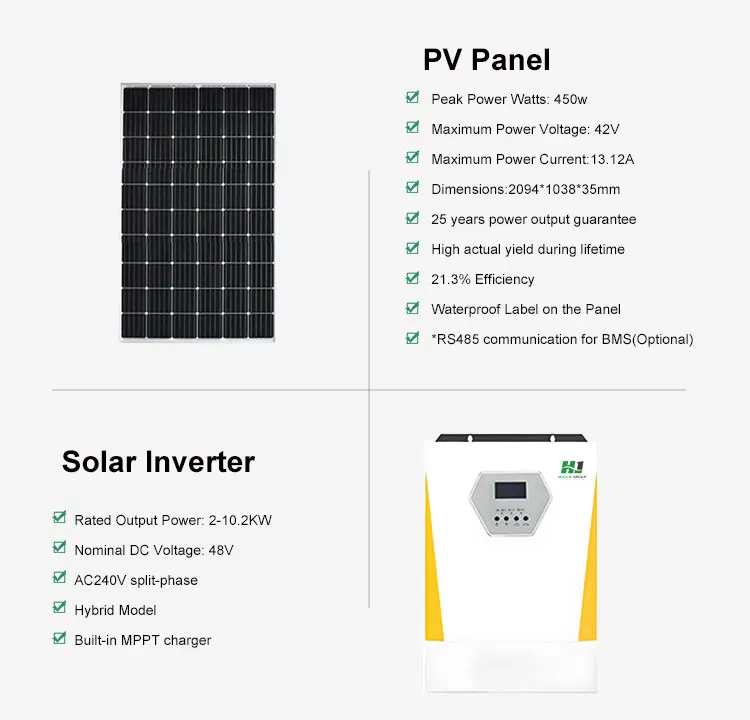

Solar panel
Monocrystalline 400-700W
Battery life
6000 cycles
Certificate
CE/IEC/UN38.3/MSDS
OEM/ODM
Acceptable
Way of Communication
RS485/CAN
warranty
3 years
Production Details
System MODEL | HJ-HBS5KW | HJ-HBS8KW | HJ-HBS10KW | HJ-HBS12KW |
PV System Size Nominal (kWp) | 5.5 | 8.8 | 11 | 13.2 |
PV MODULE SPECIFICATIONS (*half cell mono) | ||||
Power (W) | 550 | |||
Vmp (V) | 41.96 | |||
Dimensions (L x W x H) (mm) | 2279*1134x35 | |||
Certification | CE / TUV (IEC 61215 & IEC 61730) | |||
INVERTER SPECIFICATIONS | ||||
Inverter Size (kW) | 5 | 8 | 10 | 12 |
Max DC Power (W) | 6500 | 10400 | 13000 | 15600 |
Max DC Voltage (V) | 500 | 1000 | ||
MPPT Voltage Range(V) | 150-425 | 125-425 | 200-650 | 200-650 |
Output Voltage | 220,230Vac | 220/380,230/400Vac | ||
UPS (Off Grid Model with Battery) | ||||
Rated Power (VA) | 5000 | 8000 | 10000 | 12000 |
Max DC Charge/Discharge Current(A) | 120 | 190 | 210 | 240 |
Max Power(W)for 10 Seconds | 7500 | 12000 | 15000 | 18000 |
BATTERY BANK SPECIFICATIONS | ||||
Battery Type | Li-Ion(LifePO4) | |||
Total Batteries | 1 | 2 | 3 | 4 |
Battery Bank Power(kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
Battery Voltage (V) | 48/51.2 | |||
Battery Current(Ah) | 100 | |||
Number of PV Modules | 10 | 16 | 20 | 24 |
Application scenarios

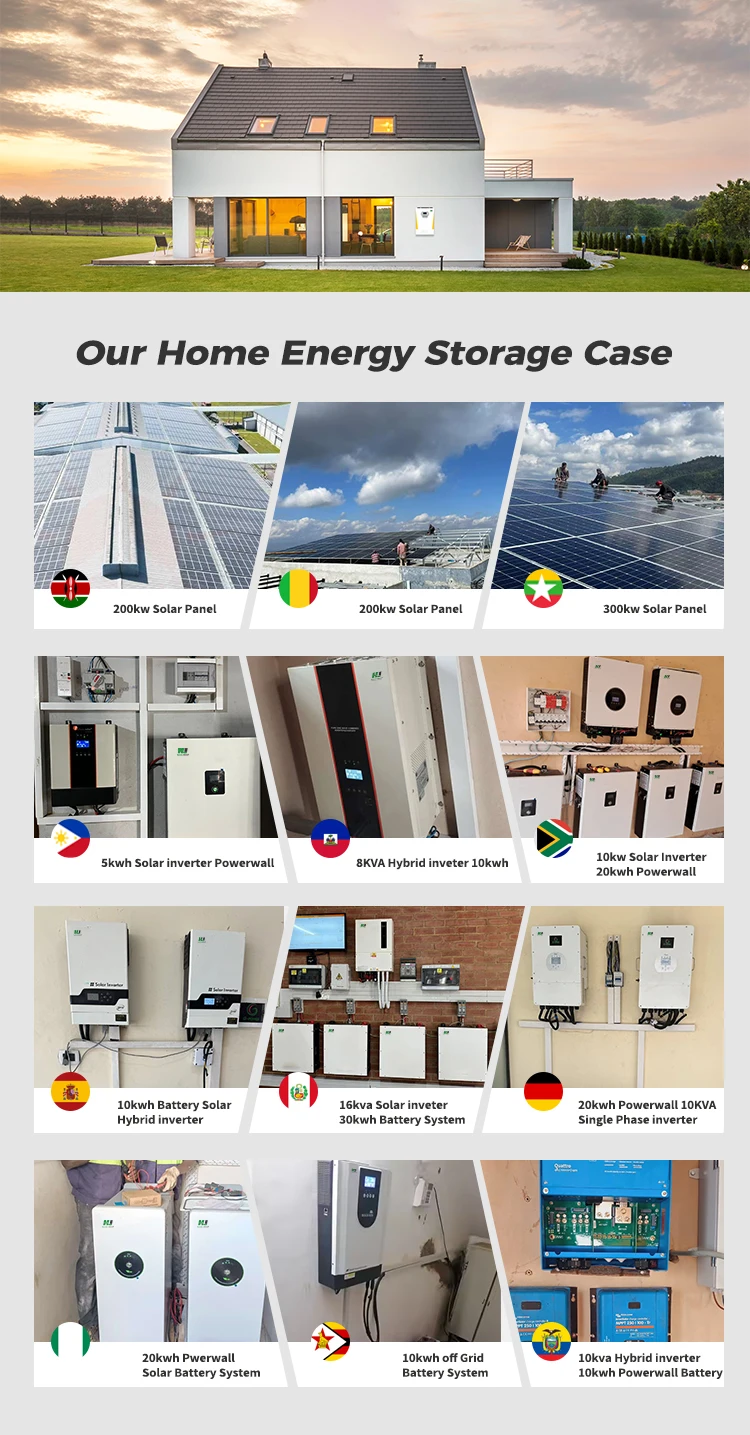

Project case
